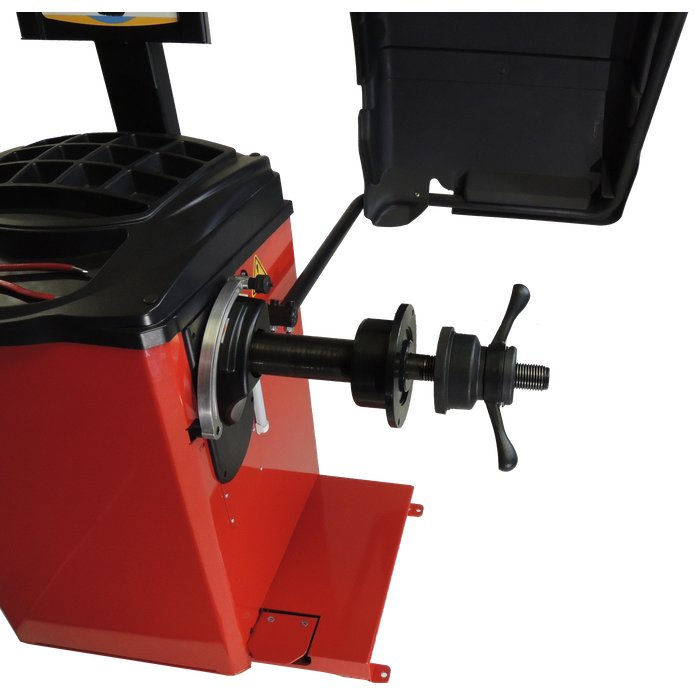

Tuxedo Wheel Balancer | WB-CB66-VE
The Big-Wheel Balancer with Laser Weight Indicator for Oversized SUV and Truck Wheels
The Tuxedo WB-CB66-VE is a big-wheel balancer sized for the shop that regularly balances oversized SUV, light-truck and lifted-truck wheels. Handles up to 28 inch rim diameter and 44 inch overall wheel diameter, 1.5 to 20 inch rim width and up to 150 lb per wheel. Three vehicle modes (SUV, Car, Motorcycle) cover the entire fleet on one machine.
The exclusive laser indicator automatically lights up at the unbalanced weight position in the 6 o clock wheel position under ALUS mode. Combined with the interior light indicator that illuminates inside of the wheel at the unbalanced position, weight application is faster and more accurate than reading a screen. Foot pedal braking system holds the wheel exactly where you set it while you apply weight.
Runs at 140 RPM, a lower spin speed that extends the life of sensitive electronics and moving components while still providing 1-gram accuracy. Extra-long 12-inch, 40 mm diameter balancing shaft accommodates unique aftermarket wheels. Speed-Nut mounting, integrated retractable measurement wand, 14 articulated weight-storage pockets, 38-inch wheel shroud, power-saving stand-by mode. Runs on 110V single-phase 15 A. Backed by Tuxedo one-year parts warranty.
Key Features of the WB-CB66-VE That Matter in a Real Tire and Wheel Bay:
- Handles Rims to 28 in and Wheels to 44 in: Handles rim diameters to 28 inches and overall wheel diameter to 44 inches. Sized for lifted-truck and oversized SUV wheels the WB-953 will not fit.
- SUV, Car and Motorcycle Modes: Standard with SUV, Car and Motorcycle balancing modes. One machine covers the whole fleet including big-wheel work.
- Exclusive Laser Weight Indicator: Laser indicator lights up automatically at the unbalanced weight position in the 6 o clock wheel position under ALUS mode. Faster and more accurate weight application than reading a screen.
- Interior Light Indicator: Light indicator illuminates inside the wheel at the unbalanced weight position for even easier weight application on deep-dish wheels.
- Extra-Long 12 in, 40 mm Balancing Shaft: Extra-long 40 mm shaft accommodates unique aftermarket wheels of different offsets and shapes that a shorter shaft cannot handle.
- Low-RPM 140 RPM Operation: Lower 140 RPM spin extends the life of sensitive electronics and moving components while still providing 1-gram accuracy.
- Foot Pedal Braking System: Foot pedal secures the wheel in the unbalanced position hands-free while you apply weight. Faster and more accurate than a hand-triggered brake.
- Power-Saving Standby Mode: Automatically puts the machine in stand-by mode after 5 minutes of non-usage. Longer machine life and lower power draw.
WB-CB66-VE Wheel Balancer Specifications | |
Manufacturer | Tuxedo Distributors, LLC |
Model | WB-CB66-VE |
Configuration | Big-wheel balancer with laser weight indicator and full hood |
Data Entry | Keypad |
Max Wheel Diameter | 44 in overall (28 in rim) |
Rim Width Range | 1.5 in to 20 in |
Rim Diameter Range | 10 in to 28 in |
Wheel Weight Capacity | 150 lb per wheel |
Accuracy | 1 gram |
Spin Speed | 140 RPM (low-RPM, extended-life operation) |
Balancing Modes | SUV, Car, Motorcycle plus 5 ALU Standard modes and 2 ALU Smart modes |
Weight Indicator | Exclusive laser + interior light indicator at unbalanced weight position |
Balancing Shaft | 12 in long, 40 mm diameter |
Mounting | Speed-Nut quick-release with lead-in screw |
Wheel Hood | 38 in wheel shroud |
Braking System | Foot pedal |
Weight Storage | 14 articulated pockets, over 1.5 in deep |
Standby Mode | Auto after 5 minutes of non-usage |
Calibration | Self-calibrating |
Power Supply | 110V, 15 A, 1-Phase |
Shipping Weight | 352 lb |
Warranty | Tuxedo 1-year (12 months) parts warranty against all product defects |
