iDEAL 2,500 lb Electric-Hydraulic UTV Frame Lift | UF-2500EH-X

The 2,500 lb Wheels-Free UTV Frame Lift That Turns Any Bay Into a Powersport Service Stand

The iDEAL UF-2500EH-X Pro-Series is a wheels-free frame lift for UTVs, ATVs and everything in between. Instead of driving the whole machine up on a wide bench, the UF-2500EH-X slides between the wheels, contacts the frame at four points and lifts the vehicle straight up with the wheels dangling free. That is exactly what you want when you are pulling axles, servicing suspension, changing tires or working on the differential.

The 2,500 lb capacity handles everything from the largest full-size Polaris RZR or Can-Am Defender all the way down to the smallest sport ATV. The compact 24 inch wide by 67 inch long platform tucks into a tight bay and gives you real workspace around the machine. Rise height is 43 inches (or 49 inches with the included rubber lift pads), and the low 4.75 inch minimum drive-on height means you can roll almost anything straight on without ramps.

A 110V electric-hydraulic power unit raises and lowers the lift in 25 seconds each direction with an electro-magnetic lock release and three mechanical locking positions. Includes four heavy-duty rubber contact lift pads (4.75 x 6.5 in), load-bearing hinged ramp extensions, and a power unit pedestal stand that can be portable or bolted down. Available in iDEAL Blue or Limited Edition Black. Optional WHLSTDKIT-UF2500EH-X wheel stand kit sold separately.

Key Features of the UF-2500EH-X That Matter in the Powersport Bay:

- Exclusive Wheels-Free Frame Lift Design: Contacts the vehicle at four frame points and lifts the whole machine with the wheels dangling free. Real access to axles, suspension, differential and driveline that you cannot get with a wide-deck bench lift.

- Fits the Full Powersport Range: 2,500 lb capacity handles the largest UTVs (Polaris RZR, Can-Am Defender, Kawasaki Mule, Yamaha Wolverine) all the way down to the smallest sport ATVs and side-by-sides. One lift covers the whole fleet.

- Compact 24 in Wide Footprint: Only 24 inches wide and 67 to 88-7/8 inches long depending on ramp position. Tucks into a tight bay and leaves you actual work-around clearance instead of eating the whole floor.

- 43 in Rise, 4.75 in Drive-On Height: 43 inch max rise (49 inches with rubber pads) gets you real under-machine access at standing height. 4.75 inch minimum height means most powersport vehicles roll straight on without ramps.

- Smooth 110V Electric-Hydraulic Operation: Runs off a standard 110V shop outlet, 18 amp draw. 25 second lift, 25 second lower. No shop air, no 220V wiring, no compressor needed.

- Control Panel with Electro-Magnetic Lock Release: Fully operational control panel handles up, down and lock release in one place. Electro-magnetic lock release drops the lift through three mechanical positions with the push of a button.

- Load-Bearing Hinged Ramp Extensions: Heavy-duty diamond plate ramp extensions swing down for drive-on and fold up out of the way for service. Load-bearing hinges hold the ramps flat under the full weight of the vehicle.

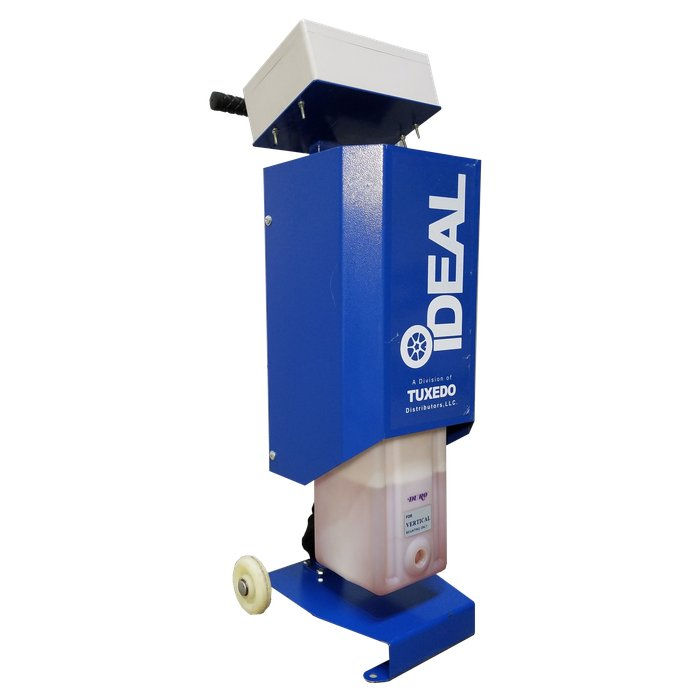

- Portable or Bolted-Down Power Unit Pedestal: Included pedestal stand holds the power unit at working height. Use it portable, or bolt it to the floor. Includes a power unit cover with storage bin for pads and adapters.
