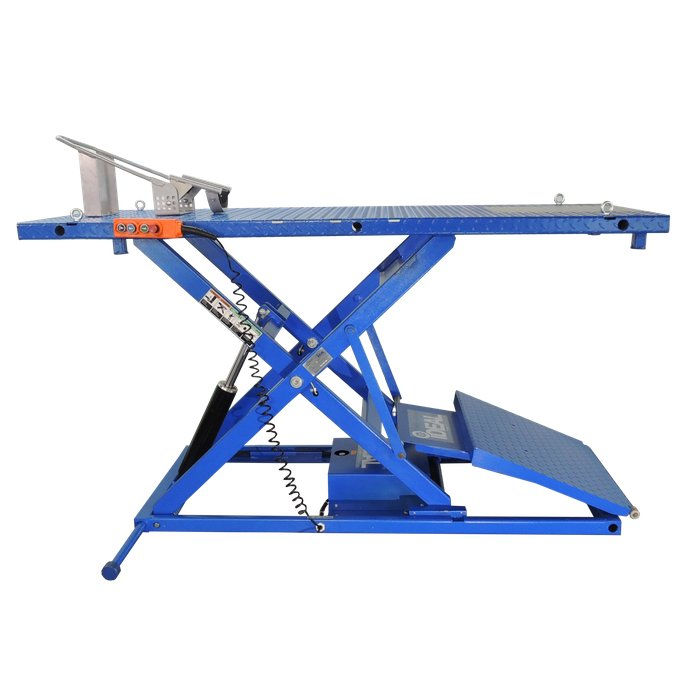

iDEAL 2,200 lb Motorcycle Lift Bench | M-2200IEH-XR

The 2,200 lb Motorcycle Lift Bench with a Full-Width Retractable Ramp for the Cruiser, Sportbike and Trike Bay

The iDEAL M-2200IEH-XR is a purpose-built motorcycle service lift for the shop, dealership or serious rider working on cruisers, touring bikes, sportbikes, adventure bikes and trikes. Its 2,200 lb capacity and 88-5/8 by 31.5 in platform take a full-dress Harley Ultra, a Honda Gold Wing or a BMW GS with room for tools and tie-downs. The lift rises to a full 47-1/4 inches so you can service the drivetrain, exhaust and suspension without stooping.

What sets this lift apart is the exclusive full-width retractable ramp system. Roll the bike up the ramp, then retract the ramp back under the bench so it does not stick out into the aisle or trip a customer. Combined with a rear drop-down service panel and platform-mounted tie-down anchor eye bolts, you can walk all the way around the bike and get straps around the frame without stepping on a ramp.

A 110V integrated electric-hydraulic power unit with a hand-held single-point remote pendant lifts and lowers the platform in 30 seconds each direction, and a magnetic lock release drops the platform through six locking positions. Includes an integrated wheel stop, stabilizer bar and mounting points for the optional M-VISE (motorcycle vise), M-CHOCK (front wheel chock), M-JACK and the TRIKEKIT-2200IEH-XR trike conversion kit. Available in iDEAL Blue or Limited Edition Black.

Key Features of the M-2200IEH-XR That Matter in the Motorcycle Bay:

- Exclusive Full-Width Retractable Ramp: The whole approach ramp retracts back under the bench after you roll the bike on. No permanent ramp sticking out into the aisle and no separate ramp to store.

- 2,200 lb Capacity, 47-1/4 in Rise: Handles full-dress touring bikes (Harley Ultra, Gold Wing, BMW K), cruisers, sportbikes and adventure bikes. Six locking heights let you park the platform exactly where you want to work.

- Motorcycle-Sized 31.5 x 88-5/8 in Platform: Sized for the widest touring bikes and long wheelbases. Overall length with ramp is 116-1/2 inches and overall width including the stabilizer bar is 58 inches, so the whole lift lives inside a standard bay.

- Integrated 110V Electric-Hydraulic Power Unit: Runs off a standard 110V shop outlet, 18 amp draw. No shop air needed. Single-point hand-held remote pendant handles lifting, lowering and lock release.

- Rear Drop-Down Service Panel: The rear panel drops down to give the tech easy access to the back tire, drivetrain and exhaust without climbing on the ramp or reaching over the deck.

- Built-In Wheel Stop + Stabilizer Bar: Integrated wheel stop keeps the front wheel planted while you strap down. Stabilizer bar keeps the platform rock-solid at full lift height. Tie-down anchor eye bolts included.

- Six Locking Height Positions: Magnetic lock release drops the platform through six mechanical positions. Set it at drive-on height to load, mid-height for wheels and tires, or full height for driveline and exhaust.

- Ready for M-VISE, M-CHOCK, M-JACK and Trike Kit: Platform is designed with mounting points for the optional M-VISE (motorcycle vise), M-CHOCK (front wheel chock), M-JACK, DLYWHLKIT-2200IEH dolly wheel kit, FRTEXT-2200IEH front extension and TRIKEKIT-2200IEH-XR trike conversion kit.

Talk to a Pitstop Pro Specialist or Browse More Shop Equipment

Shop All Motorcycle LiftsBrowse All Shop EquipmentTalk to a Specialist

Manuals

M-2200IEH-XR Manual (October 2018)

M-2200IEH-XR Cut Sheet / Flier
