iDEAL 2,200 lb Electric-Hydraulic ATV Lift Bench | A-2200IEH-XR
The 2,200 lb ATV Lift Bench with a Full-Width Retractable Ramp for Sport Quads, Utility ATVs and Trikes
The iDEAL A-2200IEH-XR is a purpose-built ATV service lift for the shop, dealership or serious rider working on sport quads, utility ATVs and trikes. Its 2,200 lb capacity and 50 by 88.6 inch platform fit full-size ATVs like the Polaris Sportsman, Honda Foreman, Yamaha Grizzly and Suzuki KingQuad with room for tools and a bit of tie-down slack. The lift rises to a full 47.25 inches for real under-machine access to the frame, driveline and CV joints.

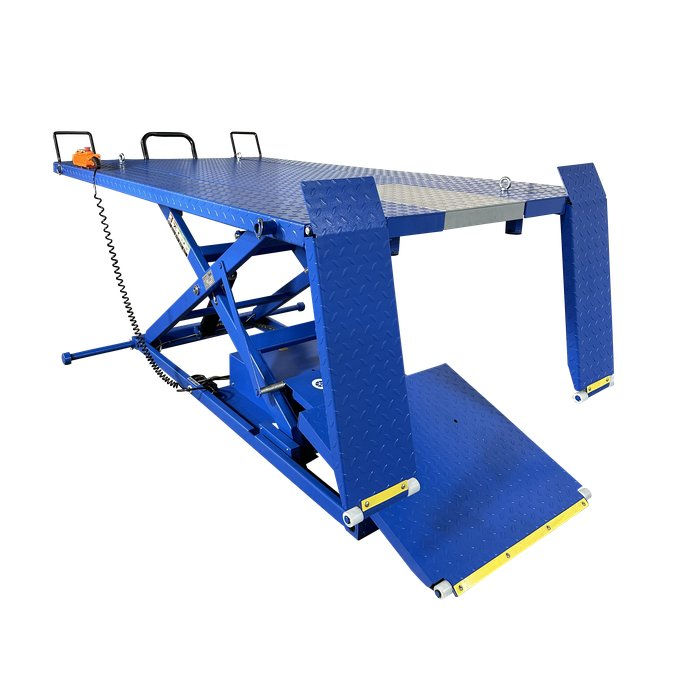

What makes this lift stand out is the exclusive full-width retractable ramp system. Roll the ATV up the ramp, then retract the ramp out of the way instead of leaving it sticking out into the aisle. Combined with a rear drop-down service panel and platform-mounted tie-down anchor eye bolts, you can walk all the way around the machine and get straps around the frame without stepping on a ramp.
A 110V integrated electric-hydraulic power unit with a hand-held remote control pendant lifts and lowers the platform in 30 seconds each direction, and a magnetic lock release drops the platform through six locking positions. Includes a stabilizer bar, wheel stops and mounting points for the optional M-VISE (motorcycle vise), M-CHOCK (front wheel chock) or M-JACK. Available in iDEAL Blue or Limited Edition Black. Backed by iDEAL / Tuxedo.
Key Features of the A-2200IEH-XR That Matter in the ATV Bay:
- Exclusive Full-Width Retractable Ramp: The whole approach ramp retracts out of the way after you roll the ATV on. No permanent ramp sticking out into the aisle and no separate ramp to store.
- 2,200 lb Capacity, 47.25 in Rise: Handles sport quads, utility ATVs (Sportsman, Foreman, Grizzly, KingQuad) plus trikes and side-by-side singles. Six locking heights let you set the working height exactly where you want.
- ATV-Sized 50 x 88.6 in Platform: Sized to fit full-size ATVs with tie-down slack. Overall length with ramp deployed is 116.5 inches, overall width including the stabilizer bar is 50 inches, so the whole lift lives inside a standard bay.

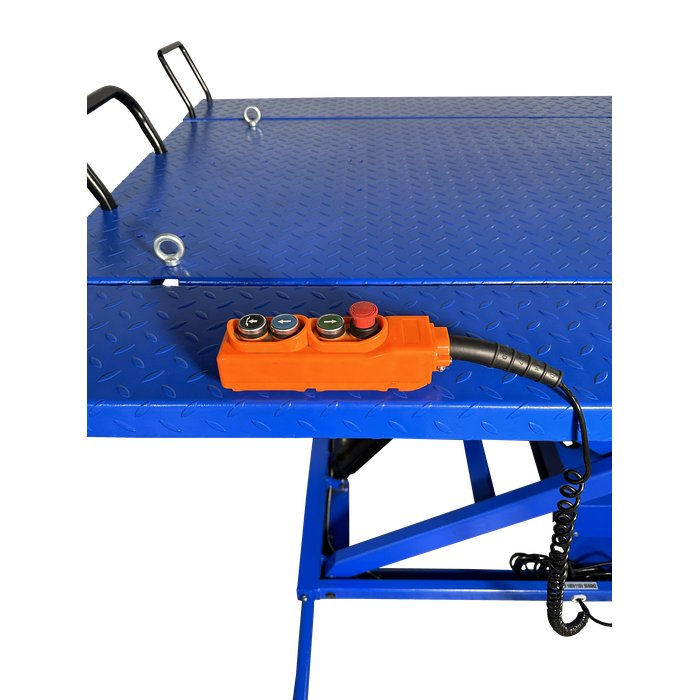

- Integrated 110V Electric-Hydraulic Power Unit: Runs off a standard 110V shop outlet, 18 amp draw. No shop air needed. Hand-held remote control pendant handles lifting, lowering and lock release with one thumb.
- Rear Drop-Down Service Panel: The rear panel drops down to give the tech easy access to the back of the machine without climbing on the ramp or reaching over the deck.
- Built-In Wheel Stops + Stabilizer Bar: Wheel stops keep the ATV from rolling forward off the deck, and the stabilizer bar keeps the platform planted at full lift height. Tie-down anchor eye bolts included for straps.
- Six Locking Height Positions: Magnetic lock release drops the platform through six mechanical positions. Set it at drive-on height to load, mid-height for tire changes, or full height for suspension and driveline work.
- Ready for M-VISE, M-CHOCK and M-JACK: Platform is designed with mounting points for the optional M-VISE (motorcycle vise), M-CHOCK (front wheel chock), M-JACK and FRTEXT-2200IEH front extension kit.
A-2200IEH-XR ATV Lift Bench Specifications | |
Manufacturer | iDEAL Distributed by Tuxedo Distributors, LLC |
Model | A-2200IEH-XR (Blue) or A-2200IEH-XR-BLK (Black) |
Configuration | Electric-hydraulic scissor lift bench with retractable ramp |
Primary Application | Sport quad, utility ATV and trike service |
Lifting Capacity | 2,200 lb (1,000 kg) |
Minimum Height | 7 in (180 mm) |
Maximum Lifting Height | 47.25 in (1200 mm) |
Platform Size (L x W) | 88.625 in x 50 in (2250 mm x 1270 mm) |
Overall Length with Ramp | 116.5 in |
Overall Width incl. Stabilizer | 50 in |
Rise Time | 30 seconds |
Lower Time | 30 seconds |
Power Supply | 110V, 60 Hz, 1-Phase, 18 A |
Power Unit | Integrated 110V electric-hydraulic |
Control | Hand-held remote control pendant |
Locking Positions | Six, with magnetic lock release |
Approach Ramp | Full-width retractable ramp |
Service Access | Rear drop-down service panel |
Safety | Built-in wheel stops, stabilizer bar, tie-down anchor eye bolts |
Available Colors | iDEAL Blue, Limited Edition Black |
Optional Accessories | M-VISE, M-CHOCK, M-JACK, DLYWHLKIT-2200IEH dolly wheel kit, FRTEXT-2200IEH front extension |
Concrete Requirements | Minimum 4 in |
Finish | Durable powder coat |
Shipping Weight | 980 lb (approx) |
Warranty | iDEAL / Tuxedo standard limited warranty (see manual) |
